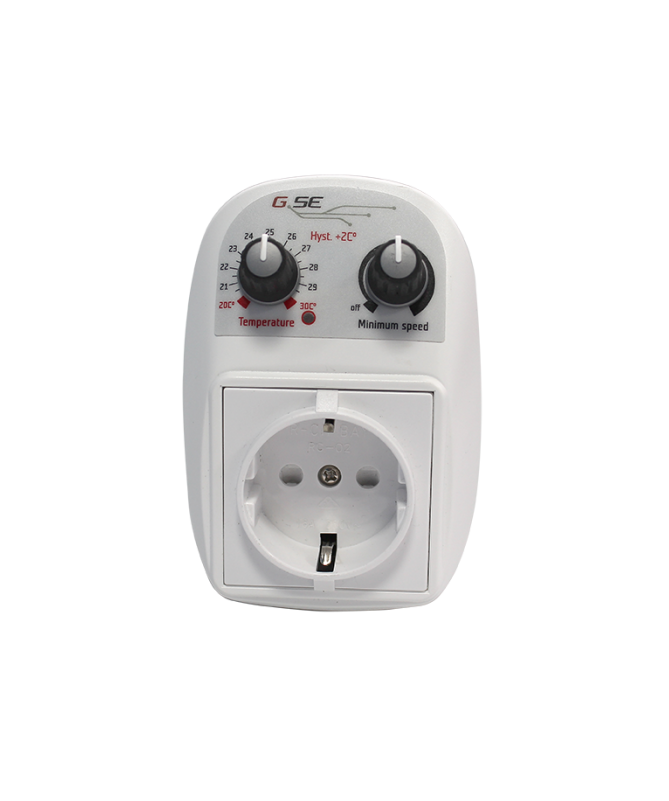

-30% G-SE CONTROLLER AND TEMPERATURE AND FAN SPEED REGULATOR FC10-205 EU

GSE 1150W/5A temperature and speed controller for 1 fan.

Automatically maintains a constant temperature in the grow room.
Fan speed controller adjusts the fan speed based on the measured temperature.

Features:

• Temperature threshold adjustment.
• Fan speed control.

Technical Specifications:

• Convenient fan connection via a socket located on the controller.
• Temperature sensor on a 4-meter cable
• Voltage: 230V / 50Hz
• Max. load: 1150W / 5A
• Temperature control range: 20 °C – 30 °C
• Fan speed range: off, 20% – 100%
• Hysteresis (accuracy): 2°C
• Dimensions: 75 x 110 x 90 mm.
• Protection rating: IP20

To understand how the controller works, please refer to the detailed description below.

This controller is a digital, temperature-dependent fan speed controller for both exhaust and supply fans.

It works by adjusting the fan’s speed when the temperature exceeds a set point by 2 °C. If the temperature is too high, the controller will increase the fan blade speed; once the temperature stabilizes at the desired level, the fan will return to its previously set speed. The sensor included in the kit has a 4-meter-long cable; and if this is insufficient, it can be extended up to 50 m. Take special care when removing the old cable, installing the new one, and during the initial startup, as improper installation may damage the device’s components.

Remember not to place the sensor too close to heat or light sources, as this may cause measurement errors and incorrect set parameters.
