AC Infinity IONBEAM U2 – UV Supplemental Lighting Kit (2 bars) 15W 365–395 nm

AC Infinity IONBEAM U2 – Set of 2 365/395 nm UV LED strips for plant cultivation

The AC Infinity IONBEAM U2 is a set of two compact UV LED strips designed for use as supplemental lighting in indoor cultivation. The system uses LEDs that emit UVA radiation at wavelengths of 365 nm and 395 nm and is designed primarily to supplement the main lighting during plant growth, fruiting, and flowering.

The entire set consumes only 15 W. Each strip is equipped with 12 LED chips, and the aluminum construction aids in heat dissipation. The housing has an IP65 rating, making the system suitable for use in the high-humidity conditions typical of indoor cultivation.

The IONBEAM U2 also stands out for its simple magnetic mounting system and the included controller, which offers 10 brightness levels and OFF, ON, and SCHEDULE modes. The system can also be integrated with the AC Infinity UIS™ platform .

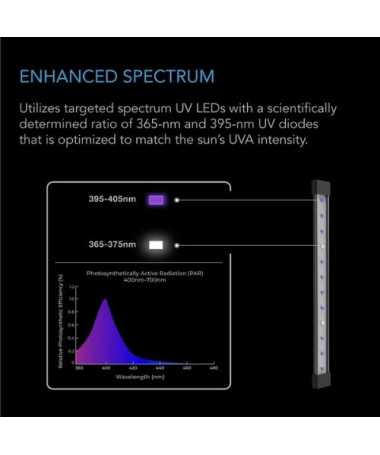

Supplementary 365 nm and 395 nm UVA Light

The AC Infinity IONBEAM U2 is not a traditional lamp designed to illuminate an entire grow setup on its own. It is a supplemental UV light that works in conjunction with the main LED lamp.

Each light bar uses LEDs with wavelengths of 365 nm and 395 nm. The UVA range supplements the primary spectrum with a portion of the radiation also found in natural sunlight.

When used properly, UV light can be employed during fruit and flower development as an additional component of the light spectrum in controlled indoor cultivation.

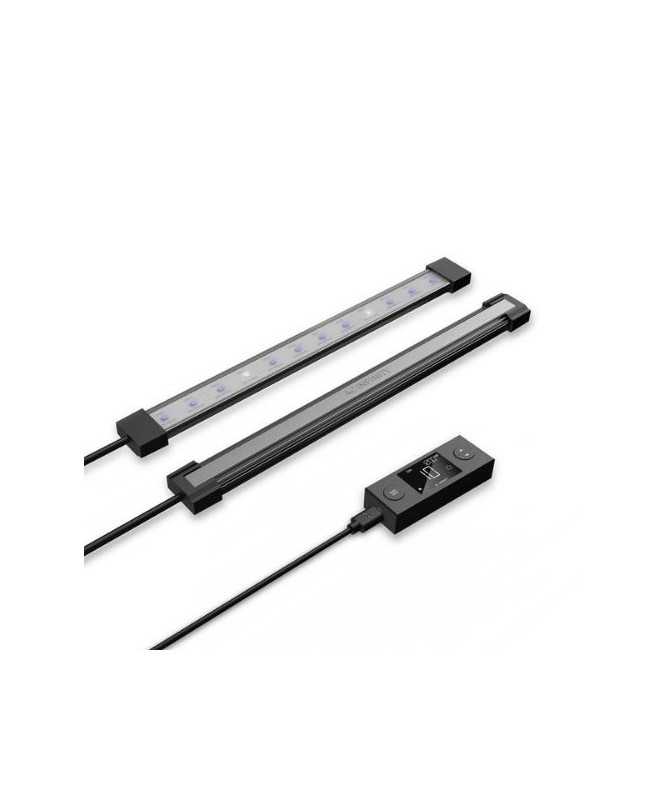

2 UV LED strips – coverage of several common areas

The IONBEAM U2 set consists of two UV LED strips. According to the provided recommendations, two strips provide UV coverage in the following spaces:

• 60 × 60 cm,
• 90 × 90 cm,
• 120 × 60 cm.

For larger areas, such as 120 × 120 cm and 150 × 150 cm, using four strips is recommended for full coverage.

This makes it easy to adapt the system to both small grow boxes and larger growing spaces.

Magnetic Mounting of IONBEAM U2 Strips

One of the system’s practical features is its magnetic mounting. The strips can be installed directly onto the metal frame components of a grow tent and onto compatible bar-type fixtures with magnetic surfaces.

The included steel mounting brackets also allow the light bars to be attached to the grow box’s canvas. The compact dimensions of a single light bar are just 27.9 × 2.75 cm, so the lighting system doesn’t take up much space inside the tent.

10 brightness levels and a scheduling function

The set includes a dedicated controller for convenient lighting management. The controller offers 10 brightness levels, allowing you to adjust the UVA intensity to suit your growing method.

There are three basic modes:

• OFF – lights off,
• ON – continuous operation,
• SCHEDULE – operation according to a set schedule.

Thanks to the schedule function, there is no need to manually turn the light strips on and off every day.

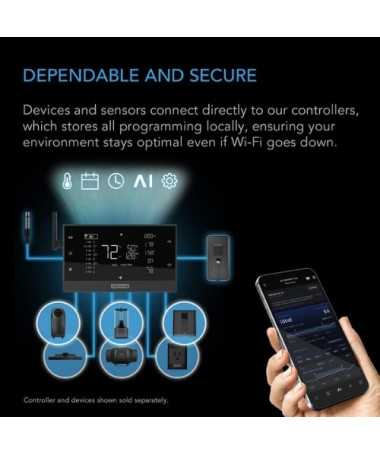

Integration with the AC Infinity UIS™ System

The IONBEAM U2 is part of the AC Infinity UIS™ platform. The light strips can be connected to compatible UIS smart controllers and integrated with other devices used in the growing space.

When paired with a compatible controller, the system provides access to more advanced settings, grow cycles, and app-based control.

IP65 – Designed for Grow Room Conditions

The light bars have an IP65 rating, which increases their resistance to dust and water ingress. The permissible humidity range during operation is 35–85% RH, while the operating temperature ranges from 0–60°C.

The aluminum construction also helps dissipate the heat generated by the LEDs. The system’s rated lifespan is 50,000 hours.

Key Features of the AC Infinity IONBEAM U2

• 2 UV LED strips included,
• UVA spectrum
at
• 365 nm and 395 nm,
• 12 LED chips on each strip,
• total power consumption of 15 W,
• supplemental lighting for indoor cultivation,
• primarily intended for the fruiting and flowering phases,
• 10 brightness levels,
• OFF / ON / SCHEDULE,
• schedule setting capability,
• compatibility with the AC Infinity UIS™ platform,
• magnetic mounting system,
• IP65 protection rating,
• 50,000-hour lifespan,
• compact dimensions of 27.9 × 2.75 cm.

AC Infinity IONBEAM U2 Coverage

AC Infinity IONBEAM U2 Technical Specifications

FAQ – AC Infinity IONBEAM U2

What are AC Infinity IONBEAM U2 light bars used for?

IONBEAM U2 is supplemental UV lighting for indoor cultivation. The light bars add UVA radiation with wavelengths of 365 and 395 nm to the primary lighting and are primarily intended for use during fruit and flower development.

Can the IONBEAM U2 replace the main LED lamp?

No. The IONBEAM U2 is a supplemental lighting system and is designed to work in conjunction with the main light source.

What is the spectrum of the IONBEAM U2 light bars?

The light bars use UVA LEDs with wavelengths of 365 nm and 395 nm.

How many light bars are included in the set?

The AC Infinity IONBEAM U2 kit includes 2 UV LED strips.

What area do the two bars cover?

Two strips are designed to cover areas of 60 × 60 cm, 90 × 90 cm, and 120 × 60 cm. For areas of 120 × 120 cm and 150 × 150 cm, four strips are recommended.

Can the intensity of the UV light be adjusted?

Yes. The included controller has 10 brightness levels.

Does the IONBEAM U2 have a timer?

The controller offers a SCHEDULE mode, allowing you to set a lighting schedule.

Is the IONBEAM U2 compatible with the UIS system?

Yes. The product is part of the AC Infinity UIS™ platform and is compatible with compatible UIS smart controllers.

Are the light strips moisture-resistant?

Yes. The design has an IP65 protection rating, and the specified operating humidity range is 35–85% RH.

What is the service life of the LED strips?

The declared service life is 50,000 hours.
