-30% MIN/MAX and Hysteresis Temperature Controller G-SE FC01-201EU

The hysteresis and temperature controller maintains the room temperature, allowing for smooth adjustments. By adjusting the hysteresis, it sets the temperature sensitivity within a range of 1–8 °C. The device is easy to use—the setpoint temperature, minimum speed, and hysteresis are set using four knobs. The controller is a standalone unit.

Security

SSL encrypted website, Dutch dedicated server

Discreet shipping

There is no sender information on the package

Returns

14 days to return without stating a reason

We are from Silesia! Buy and pick up in person in Katowice

QUICK ACCESS - CHECK THE MAP -

Średnia ocena: 4.7
Na podstawie: 112 ocen

Producer: G-Systems

G-Systems

Description

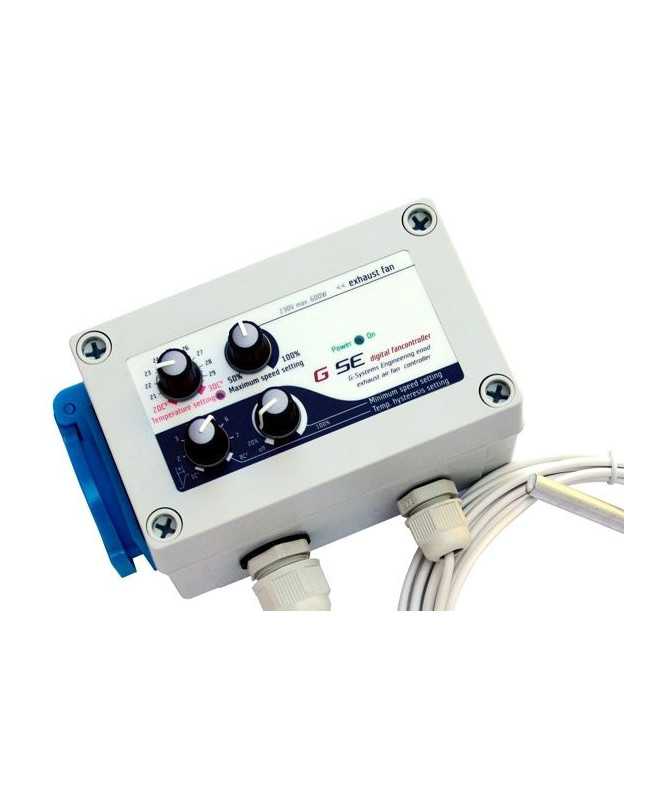

10A Digital Temperature and Fan Speed Controller (FC01-201EU) — automatically maintains a constant temperature in the grow box
- speed controller for radial fans
- adjusts fan speed based on the measured temperature

Features:
- temperature threshold adjustments
- radial fan speed controls
- convenient fan connection, with a socket located on the controller
- 4-meter cable with temperature sensor
- power cord
- Power supply: 230 V, 50 Hz;max. load:600 W
- For a detailed explanation of how the controller works, please refer to the detailed description

This controller is a digital, temperature-dependent speed controller for both supply and exhaust radial fans.
It works by adjusting the fan’s speed when the temperature exceeds a set point by 2 degrees Celsius. If the temperature is too high, the controller will increase the fan blade speed; once the temperature stabilizes at the desired level, the fan will return to its previously set speed. The sensor included in the set has a 4-meter cable; if this is insufficient, it can be extended up to 50 meters, taking special care when removing the old cable, installing the new one, and during the initial startup, as improper installation may damage the device’s components.
Remember not to place the sensor too close to heat or light sources, as this may cause measurement errors and incorrect set parameters.
