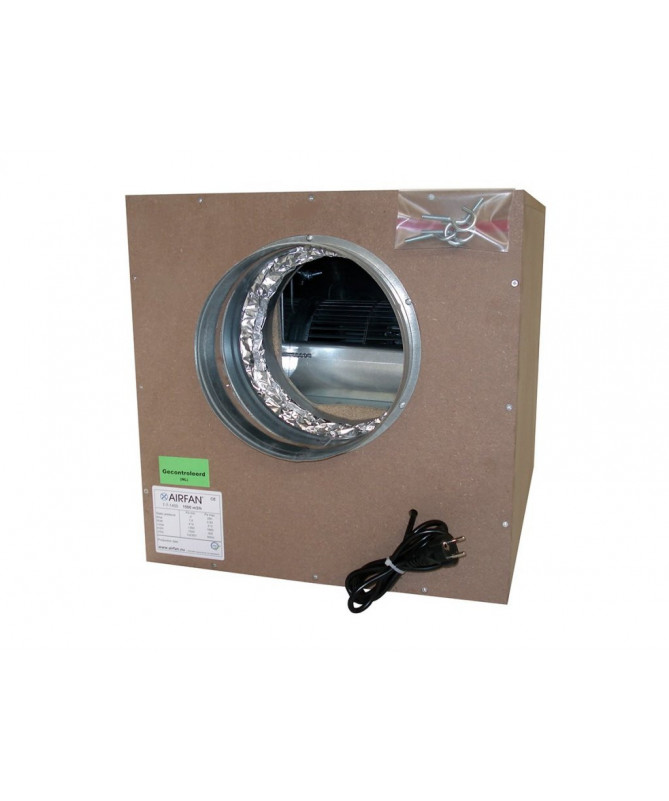

RADIAL FAN SOFT-BOX 550 EU fi160
  • RADIAL FAN SOFT-BOX 550 EU fi160 - 1

RADIAL FAN SOFT-BOX 550 EU fi160

SOFT BOX MDF fan is the quietest solution for ventilating rooms. The SoftBox series has a soft motor suspension, eliminating vibrations transmitted to the housing. The fan's motor is cushioned on rubber shock absorbers, which makes it run even quieter, leveling out vibrations transmitted to the entire box.


zł830.00 zł664.00
Available


Lowest price in the last 30 days:zł830.00

  Security

SSL encrypted website, Dutch dedicated server

  Discreet shipping

There is no sender information on the package

  Returns

14 days to return without stating a reason

  Are you from Silesia or surrounding areas? Buy and pick up in person in Katowice- Quick accessAre y

Check Map

Średnia ocena: 4.8 (86%)
Na podstawie: 8 ocen

The SOFT BOX MDF type fan is the quietest solution for room ventilation.

The SoftBox fan - silenced is the quietest solution for room ventilation on the market.
The SoftBox series has a soft motor suspension that eliminates motor vibrations transferred to the housing. The fan motor is damped (suspended on rubber dampers), making it work even quieter, while eliminating vibrations transferred to the entire box.

Features:

  • Built with high compression MDF board.
  • Airtight box housing ensures strong draft, without pressure loss.
  • Created to work with carbon filters.
  • Additionally, the entire interior is lined with sound-absorbing foam. Such foams are used in recording studios.
  • The outlet side is connected with a high-quality ventilation duct ensuring tightness and durability.
  • The fan motor is damped, suspended on rubber dampers.
  • A radial fan has been used, characterized by high working pressure and very quiet operation.
  • The box construction ensures a strong draft, without pressure loss.

Connection holes:

Inlet: Ø 160mm x 1 pc
Outlet: Ø 160mm x 1 pc

Technical data:

  • Voltage [V/50HZ] 1-230
  • Power consumption: 60-160W
  • Amperage [A] 0.36 - 0.68
  • Maximum efficiency: 96-600m³/h
  • RPM [max rotations] 96-600
  • Input [mm] Ø 160mm x 1
  • Output [mm] Ø 160mm x 1
  • Maximum operating temperature [0C] -30...+70
  • Protection standard IP 44
  • Does not require wiring - plug and play!
  • Dimensions: 35cm x 35cm x 35cm (without collar)
