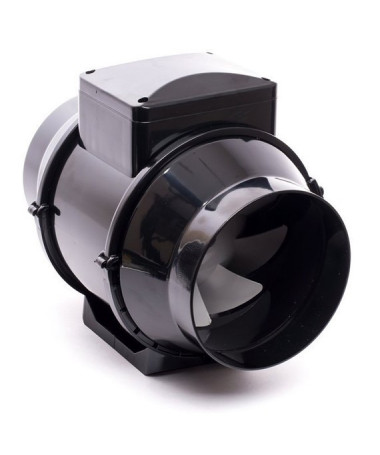

Mixed-Flo fii100 Two-speed fan 145/187m3 + Cable

The Black Orchid fi100 fan is a two-speed duct fan that is ideal for ventilation systems with a diameter of 100 mm. Its capacity ranges from 145 m³/h to 187 m³/h, making it ideal for smaller grow rooms where both air circulation and temperature and humidity control are important.

This fan offers a choice between two speeds, allowing you to adjust the output to suit your current growing needs. It is a durable device, made of high-quality materials that guarantee long life and reliability. The Black Orchid fi100 is also characterized by quiet operation, which is an important advantage for growers looking for an effective yet discreet ventilation system.

This fan provides effective air circulation, supporting healthy plant development by providing fresh air and removing excess heat and moisture from the growing room.

Parameters:

• Diameter 100mm
• Minimum capacity 145 m3/h, maximum capacity 187 m3/h
• For supply and exhaust ventilation
• For ventilation of large and medium-sized rooms
Low
• noise level min. 27 dBA max. 36 dBA
• Ball-bearing external rotor motor with built-in overload protection
• High-quality plastic housing
• Speed and temperature control with controllers
• 4-meter long

cable

• with temperature sensor
• For horizontal and vertical installation
• Includes cable with EURO connection
• Color: black

Technical data:

• Voltage [V/50HZ] 1-230
• Voltage [V/50HZ] 1-230
• Minimum power[W] 21
• Maximum power[W] 33
• Volume min.
• [dBA] 27
• Volume max[dBA] 36
• Amperage min[A] 0.11
• Amperage max[A] 0.21
• Minimum capacity [m3/h] 145
• Maximum capacity [m3/h] 187
RPM
• [
RPM
• min] 2180
RPM
• [
RPM
• max] 2385
• Input [mm] 100
• Output [mm] 100
• Minimum operating temperature setting [0C] +20
• Maximum operating temperature setting [0C] +30
• Protection standard IPX4
