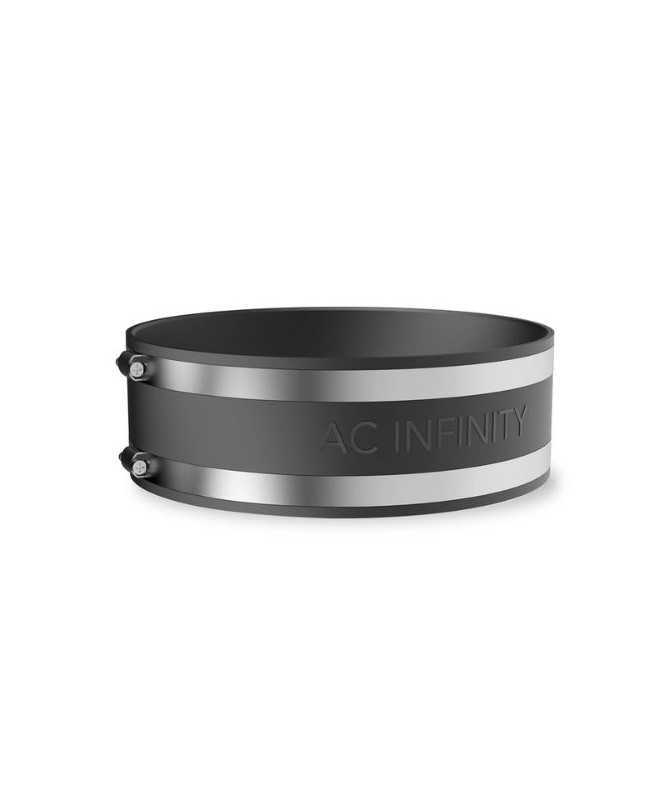

AC Infinity – 150mm Stainless Steel Noise-Reducing Clamp / Collar
The AC Infinity AC-RCA6 150 mm (6") is a flexible, vibration-dampening connector for connecting duct fans, carbon filters, and ventilation ducts . The NBR rubber construction helps reduce noise, vibration, and air leaks, while two stainless steel clamps ensure a stable and airtight connection.
SecuritySSL encrypted website, Dutch dedicated server
Discreet shippingThere is no sender information on the package
Returns14 days to return without stating a reason
We are from Silesia! Buy and pick up in person in KatowiceQUICK ACCESS - CHECK THE MAP -
Średnia ocena: 4.6
Na podstawie: 126 ocen
Na podstawie: 126 ocen
AC Infinity 150 mm Anti-Vibration Connector – A Quieter and Leak-Tight Ventilation Connection
The AC Infinity AC-RCA6 is a 150 mm flexible ventilation connector designed to connect duct fans, carbon filters, pipes, and other components of a ventilation system. Its rubber construction ensures a tight seal while helping to reduce the transmission of vibrations and noise generated by the running fan and airflow.

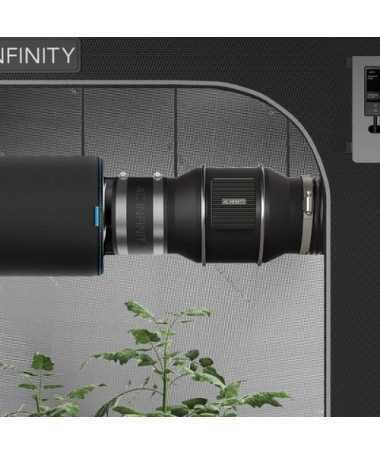

This model is designed for 6-inch / 15.2-cm diameter ports. It’s ideal for ventilating grow boxes and grow rooms, especially as a flexible connection between a 150 mm fan and a carbon filter.

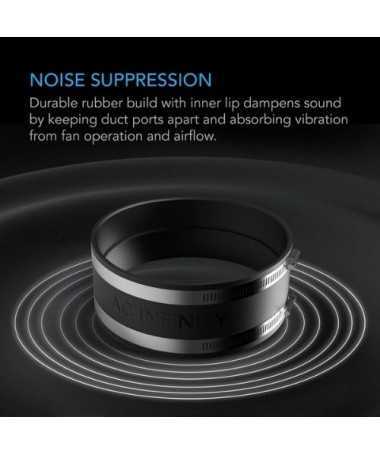

Reduction of Fan Vibrations and Noise
A direct, rigid connection between the fan and the filter or duct can cause vibrations to be transmitted to other components of the system. The AC Infinity AC-RCA6 creates a flexible rubber connection between them, which helps absorb vibrations and reduce the resulting noise.
This solution is particularly useful in systems where the ventilation runs for many hours and it is important to minimize noise levels.
Leak-proof 150 mm ventilation connection
The coupling body is made of NBR nitrile rubber with a hardness of 65A. The flexible material conforms to the surface of the pipe connections and helps seal the joint.
Reducing air leaks helps maintain proper airflow in the system. This is particularly important in systems that use a carbon filter and a duct fan.
Stainless steel clamps
Adjustable stainless steel clamps are located on both sides of the connector. A worm gear mechanism allows for precise adjustment of the clamping force and secure fastening of the connector to the pipe connections.
The clamps are positioned in special grooves in the rubber body, which help keep them in place. A flathead or Phillips screwdriver can be used for tightening.
For 150 mm fans and carbon filters
The AC Infinity AC-RCA6 can be used to connect various system components with compatible diameters, including:
- a 150 mm duct fan with a carbon filter,
- a fan with a ventilation duct,
- a carbon filter with system components,
- rigid connectors and ventilation ducts,
- HVAC system components.
A flexible connection is particularly useful between vibration-generating equipment and the rest of the ventilation system.
Diameter: 150 mm / 6 inches
The AC-RCA6 model is designed for installations with a diameter of 6 inches, or approximately 15.2 cm. Before purchasing, it is advisable to check the diameter of the fan, filter, or other components to be connected.
Key Features of the AC Infinity AC-RCA6
- 150 mm / 6" ventilation connector,
- helps reduce the transmission of vibrations and noise,
- ensures a tight connection between ventilation components,
- flexible construction made of NBR nitrile rubber,
- rubber hardness 65A,
- two stainless steel clamps,
- adjustable clamps with a worm gear mechanism,
- matte black finish,
- easy installation and removal,
- for fans, carbon filters, and ducts,
- suitable for grow boxes, grow rooms, and HVAC systems.

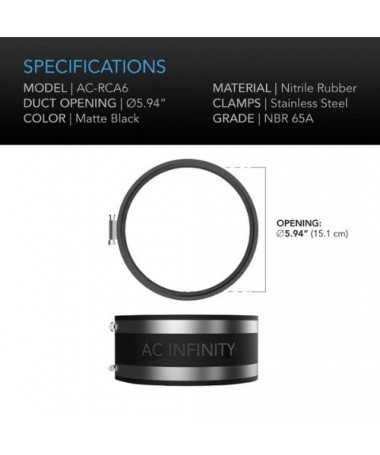

Technical Specifications
| ParameterValue | ||
|---|---|---|
| Manufacturer | AC Infinity Inc. |
| Model | AC-RCA6 |
| Type | Flexible connector / anti-vibration clamp |
| Duct diameter | 6 inches / 15.2 cm |
| Material | Nitrile rubber (NBR) |
| Rubber hardness |
| 65A |
| Color | Matte black |
| Clamps |
| Stainless steel |
| Clamp type | Screw mechanism |
| Adjustment | Flathead or Phillips screwdriver |
FAQ – AC Infinity 150 mm connector
Does the AC Infinity AC-RCA6 fit a 150 mm ventilation system?
Yes. The adapter is designed for 6-inch diameter installations , which is approximately 15.2 cm, corresponding to the 150 mm ventilation class.
Does the adapter reduce fan noise?
The rubber construction helps absorb vibrations and limit their transmission from the fan to the filter, ducts, and other system components, which can reduce the noise level.

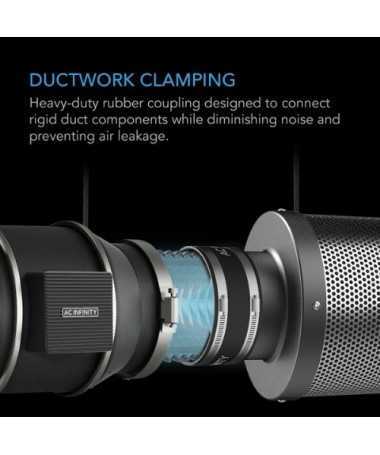

Can it be used to connect a 150 mm fan to a carbon filter?
Yes. This is one of the main applications of the AC-RCA6. The connector can create a flexible and airtight connection between the fan and the carbon filter, provided both devices have compatible ports.
Why use a rubber connector instead of a rigid connection?
The flexible rubber both seals the connection and isolates some of the vibrations generated by the running fan. This is particularly useful in grow box ventilation systems.
What is the AC Infinity AC-RCA6 made of?
The connector is made of NBR nitrile rubber with a hardness of 65A, while the adjustable clamps are made of stainless steel.
How do you install the 150 mm connector?
Slide the rubber connector onto both connecting ports, position the devices correctly, and then tighten the two screw clamps using a flathead or Phillips screwdriver.
Where can the AC Infinity AC-RCA6 be used?
This connector is ideal for grow boxes, grow rooms, ventilation systems, and HVAC installations that use compatible fittings.
